Home > Lighting System > LED COMPONENTS > DIP LED

DIP LED

Product instruction:

Dip led delivers directional light source for different area applications.
Such as home applications, traffic lightings, CCTV, and auto parts.
All different viewing angle can be customized.

Features

Features
Single color
High bright output
Low power consumption
High reliability and long life

Specification

LED Series	Image	Part Number	Size(mm)	Color	λD_Typ(nm)	IV(mcd)/ Φ(lm)_Typ	Power(W)View Angle Tye	View Angle Tye	Data Sheet

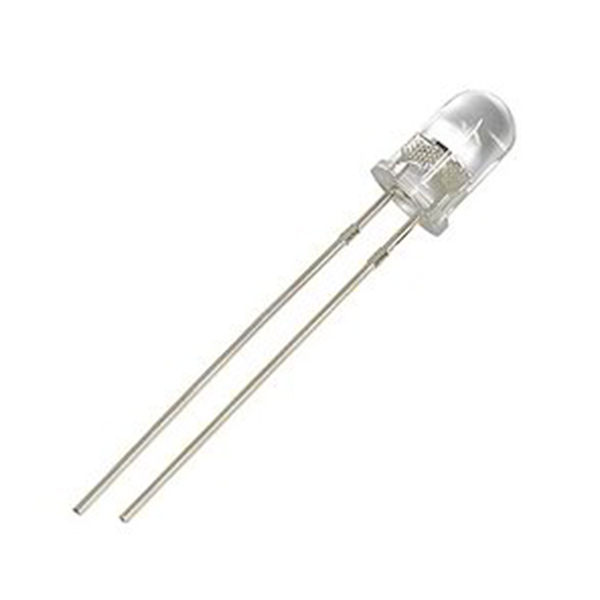

Traffic light		SOL-5030BGC	5mm	Green	505	9000 mcd	0.06 W	30°
		SOL-5030URC	5mm	Red	624	4700 mcd	0.06 W	30°
		SOL-5030UYC	5mm	Yellow	590	4800 mcd	0.06 W	30°

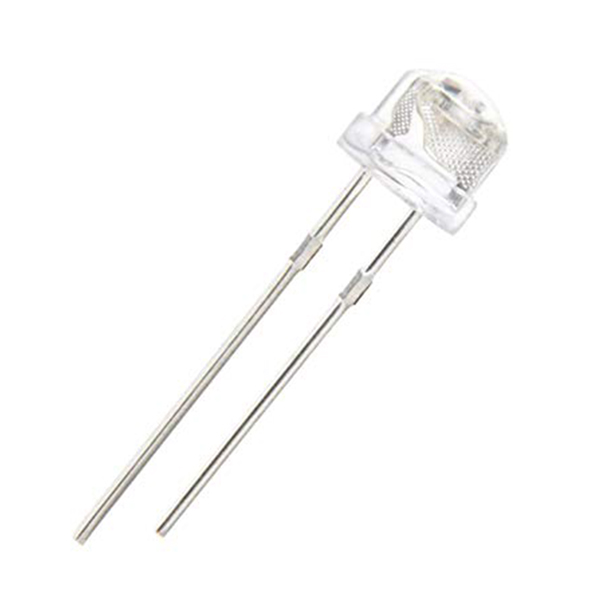

Home appliance		SOL-5015XWC	5mm	2700-6500k		20000-25000mcd	0.06 W	15°
		SOL-5100XWC	5mm	2700-6500k		2000-2400mcd	0.06 W	100°
		SOL-5090XWC-O	5mm	2700-6500k		2000-3000mcd	0.06 W	90/50°

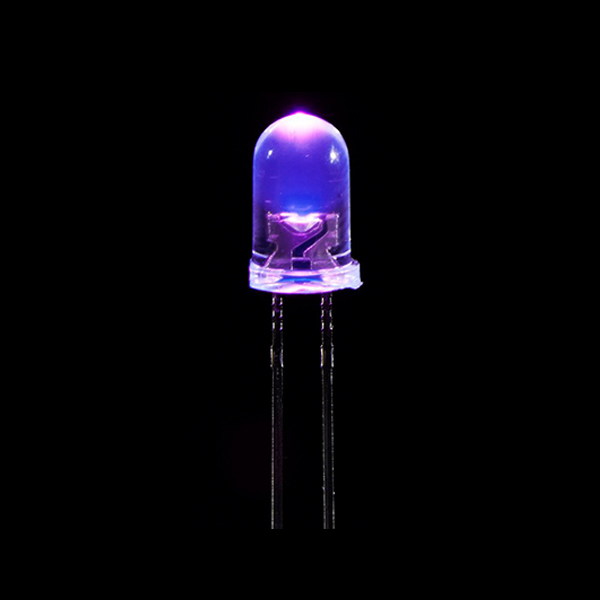

UV DIP LED		SOL-5015PUC	5mm	Purple	400	27 mcd/25 mcd	0.06 W	15°
