Product instruction:

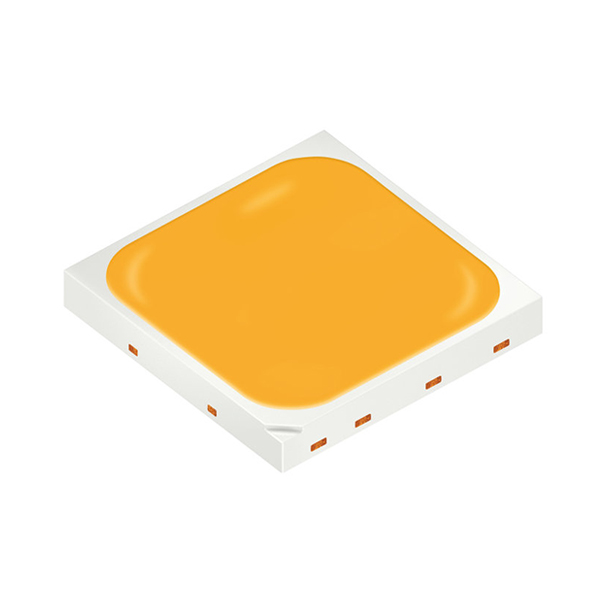

high power SMD is optimized for high lumen required and limited space
Luminaires.

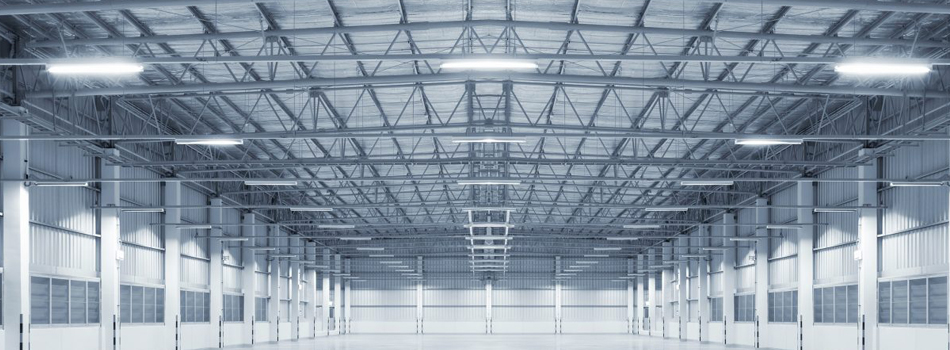

This series led delivers high performance and high reliability solution for
Industry and public lightings.
Specification
| LED Series | Image | Part Number | Color | Power(W) | IF (mA) | VF (V) | CRI | Data Sheet |

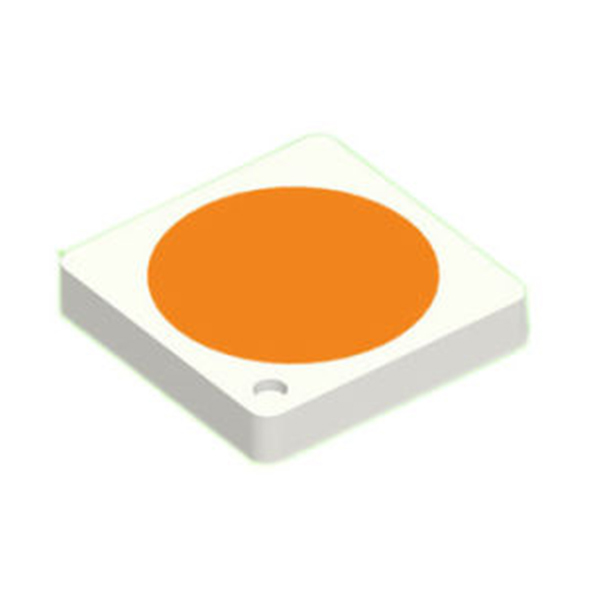

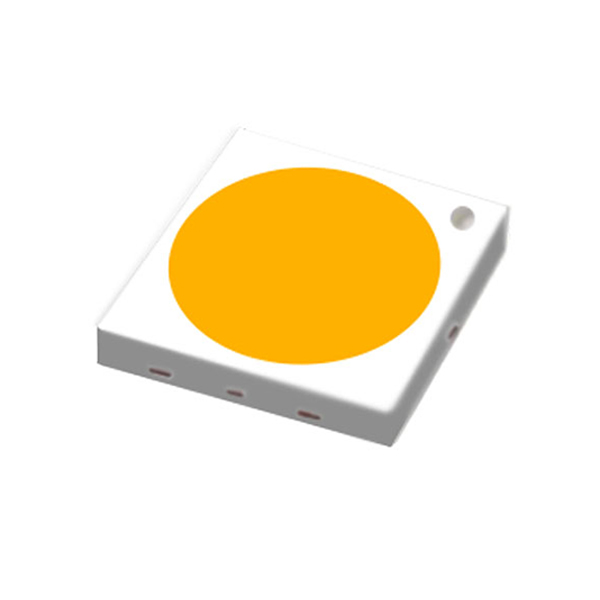

| 3030EMC |
|
SOL-3030X100-06 |
|
1 W | 150mA | 6V | >80 |
|
| SOL-3030X100-18 |
|
1 W | 60 mA | 18 V | >80 |
|
||
| SOL-3030X100-48 |
|
1 W | 25 mA | 48 V | >80 |
|
||

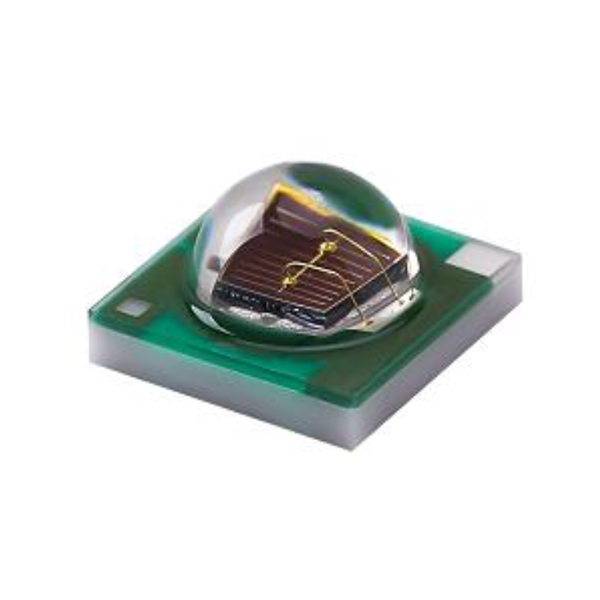

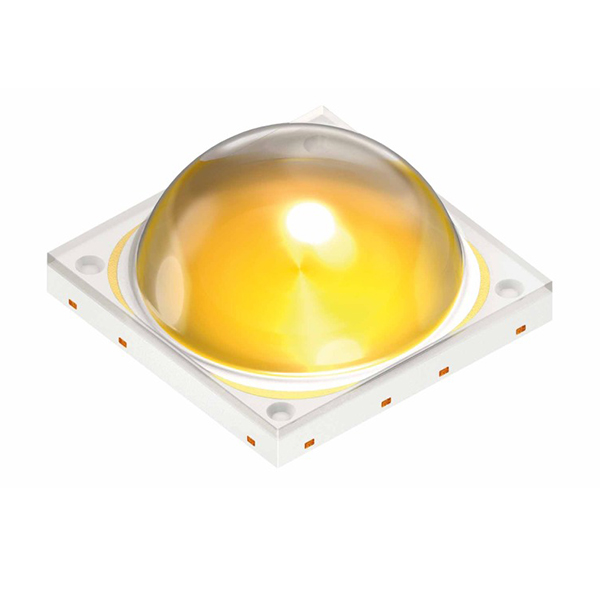

| 3535EMC |
|
SOL-3535X500-TG2 |
|
5W | 1.5 A | 3 V | >80 |
|
| SOL-3535X300-XE |
|
3W | 700mA | 2V/3V | >80 |
|
||

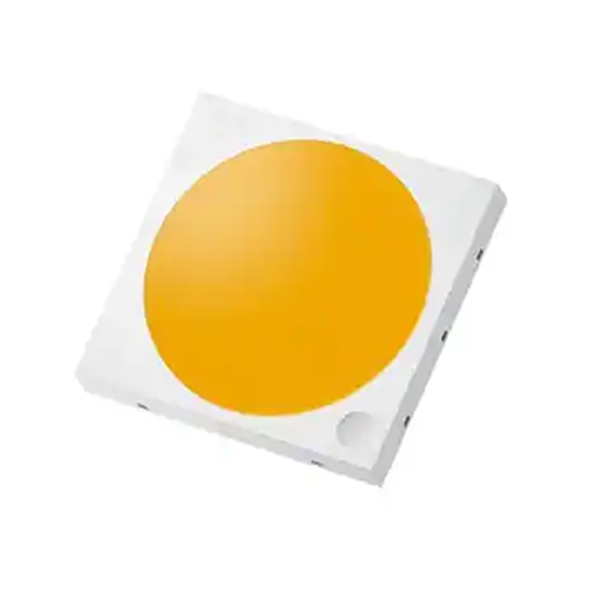

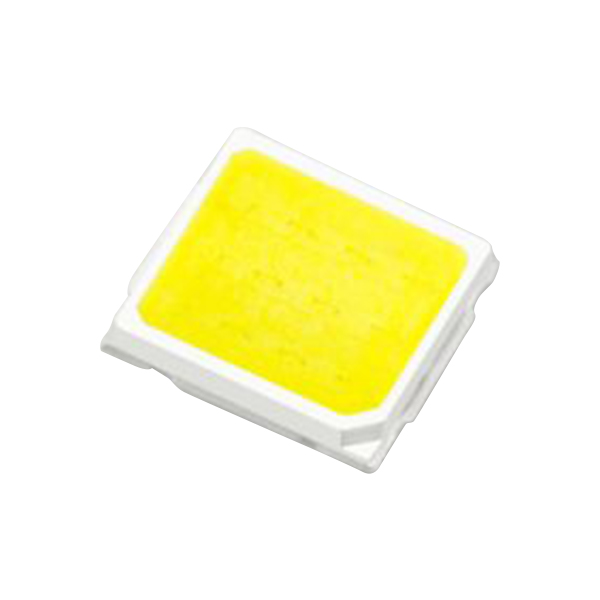

| 5050EMC |
|
SOL-HP5050X500-06 |
|
5W | 750 mA | 6 V | >80 |
|
| SOL-HP5050X400-09 |
|
4 W | 400 mA | 9 V | >80 |
|
||
| SOL-HP5050X500-12 |
|
5 W | 400 mA | 12V | >80 |
|
||
| SOL-HP5050X400-18 |
|
4 W | 200 mA | 18V | >80 |
|
||
| SOL-HP5050X500-24 |
|
5 W | 200 mA | 24V | >80 |
|
||

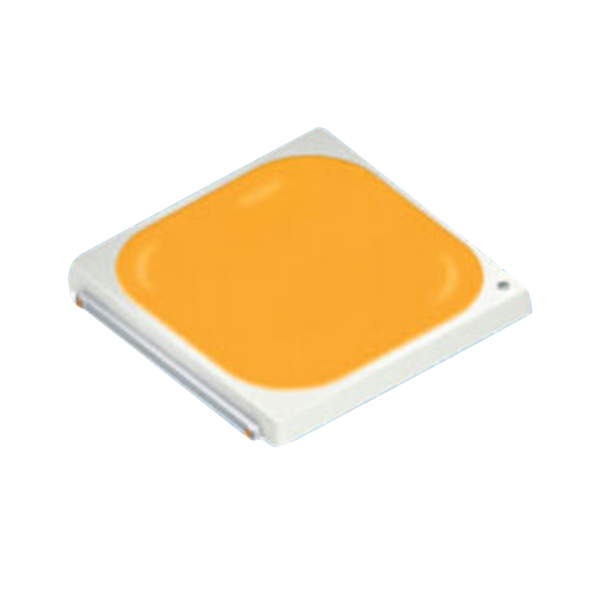

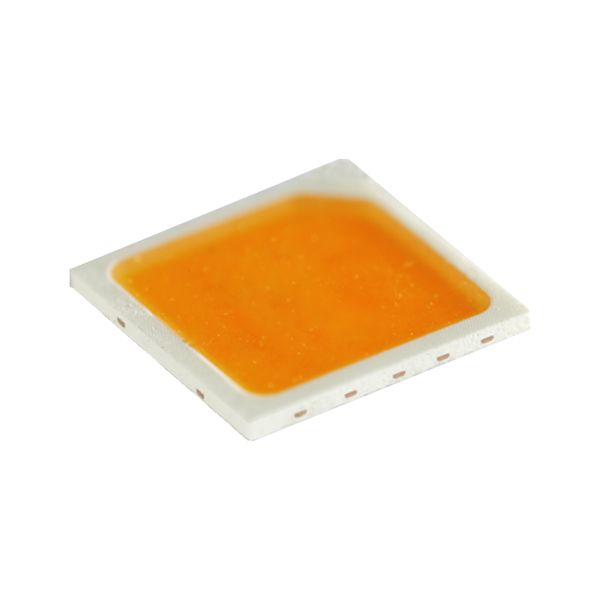

| 7070EMC |
|
SOL-HP7070C700-36 |
|
7 W | 200 mA | 36V | >80 |
|
| SOL-HP7070C900-54 |
|
9 W | 150 mA | 54 V | >80 |
|
Application
Horticulture
Uitraviolet
Marine light
