Home > Lighting System > LED COMPONENTS > SMD LED

SMD LED

Product instruction:

SMD LED Provide low power and high efficacy solution for indoor and Outdoor lightings, variety and cost-effective package make your design Of lighting flexible and competitive.

Features

Super high efficiency
High reliability performance
Viewing angle 120°
Suitable for all SMT assembly and solder process
Complied with RoHS directive

Specification

LED Series	Image	Part Number	Color	Power(W)	IF (mA)	VF (V)	CRI	Data Sheet

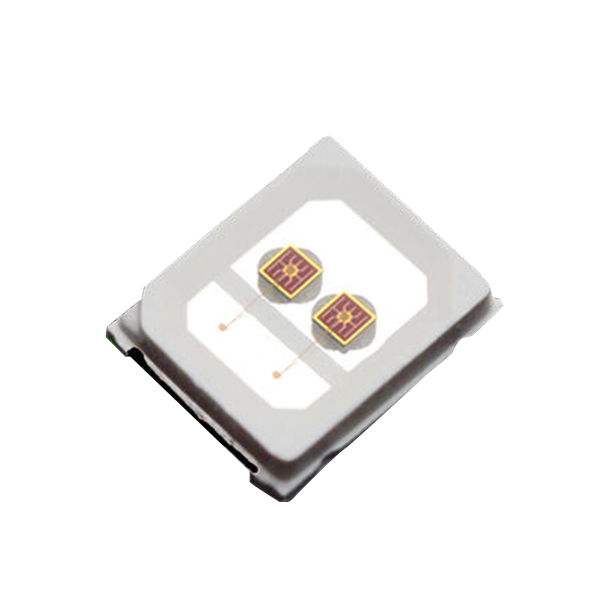

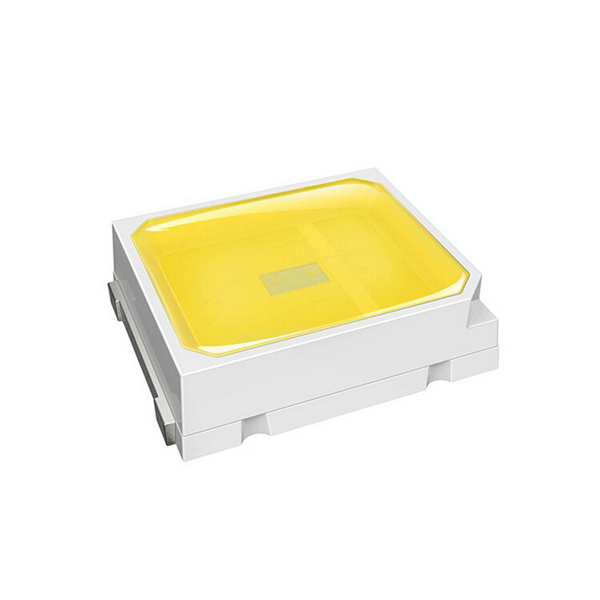

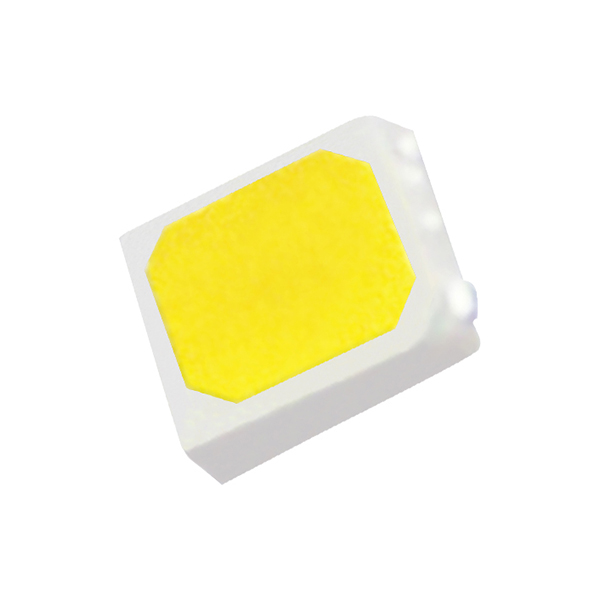

2835		SOL-2835X020-02/03		0.2W	60mA	3V	>80
		SOL-2835X020-02/03		0.2 W	60mA	2V/3V	>80

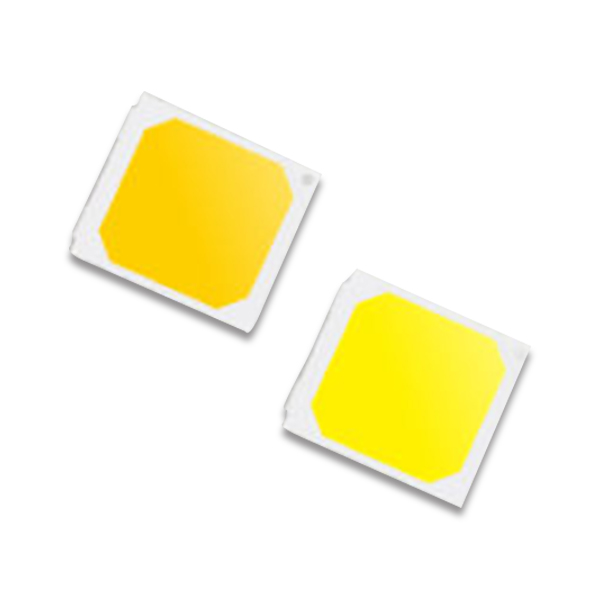

		SOL-2835X050-02/03		0.5W	150 mA	3V	>80
		SOL-2835X050-02/03		0.5W	150 mA	2V/3V	>80
		SOL-2835X050-09		0.5W	60 mA	9 V	>80
		SOL-2835X050-18		0.5W	30 mA	18 V	>80
		SOL-2835X050-36		0.5W	15 mA	36 V	>80
		SOL-2835X100-06		1 W	150 mA	6 V	>80
		SOL-2835X100-09		1 W	100 mA	9 V	>80
		SOL-2835X100-18		1 W	60 mA	18 V	>80

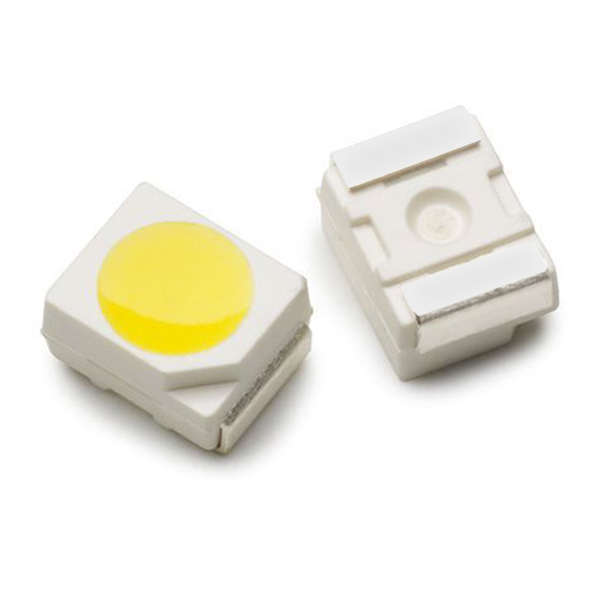

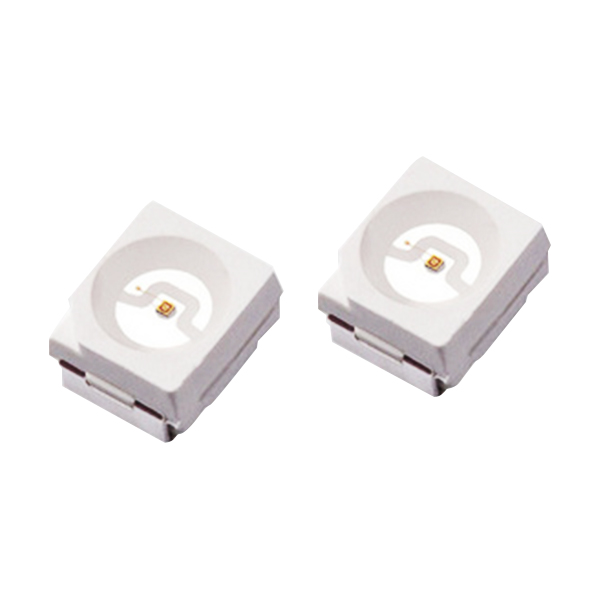

3528		SOL-3528X006-02/03		0.06 W	20 mA	3V	>80
3528		SOL-3528X006-02/03		0.06 W	20 mA	2V/3V	>80

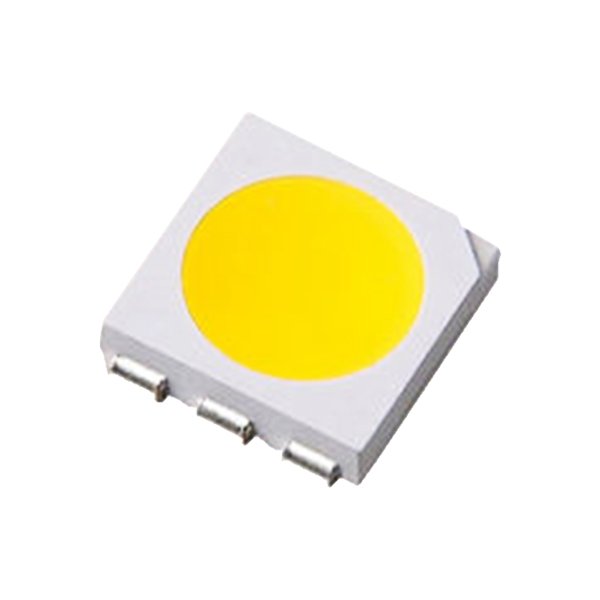

5050		SOL-5050RGB020-XX		0.2 W	60 mA	2V/3V	>80
5050		SOL-5050X020-02/03		0.2 W	60 mA	3V	>80

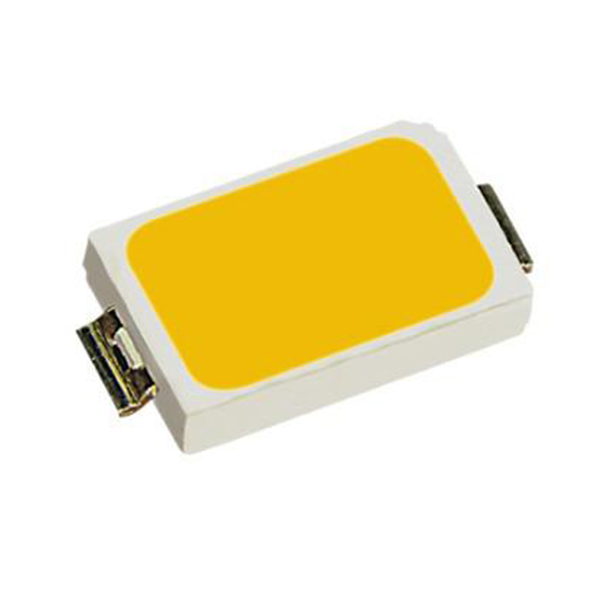

5730		SOL-5730X050-03		0.5 W	150 mA	3V	>80
