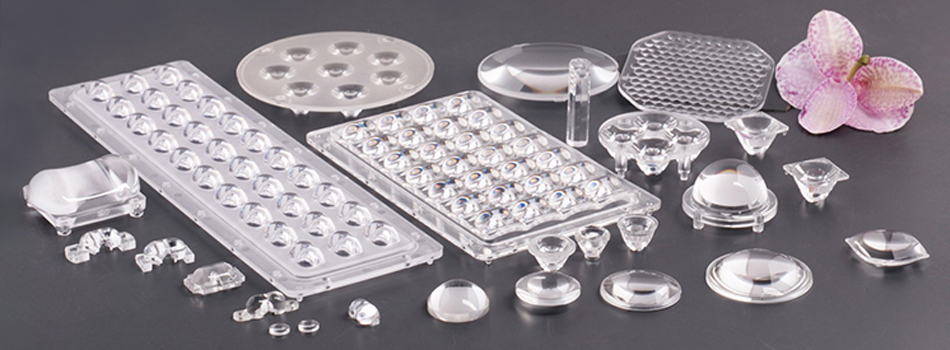

LED LENS

Product instruction:

Optical solution is a key factor to decide the quality of the luminaires. Therefore, if you need to develop new lighting product, we suggest you put the secondary optical design at the first priority.
Good optical lens and reflectors reduce light pollution and create high performance lighting output as customer want.

Features

High light efficiency
Gemetric surface design
Beam angle 25/60/90/120/85x157 degree
Lens transmittance 90%
Waterproof IP67

Specification

LED Module	Image	Part No.	Angle	Dimension	Dense array	LED type	DataSheet

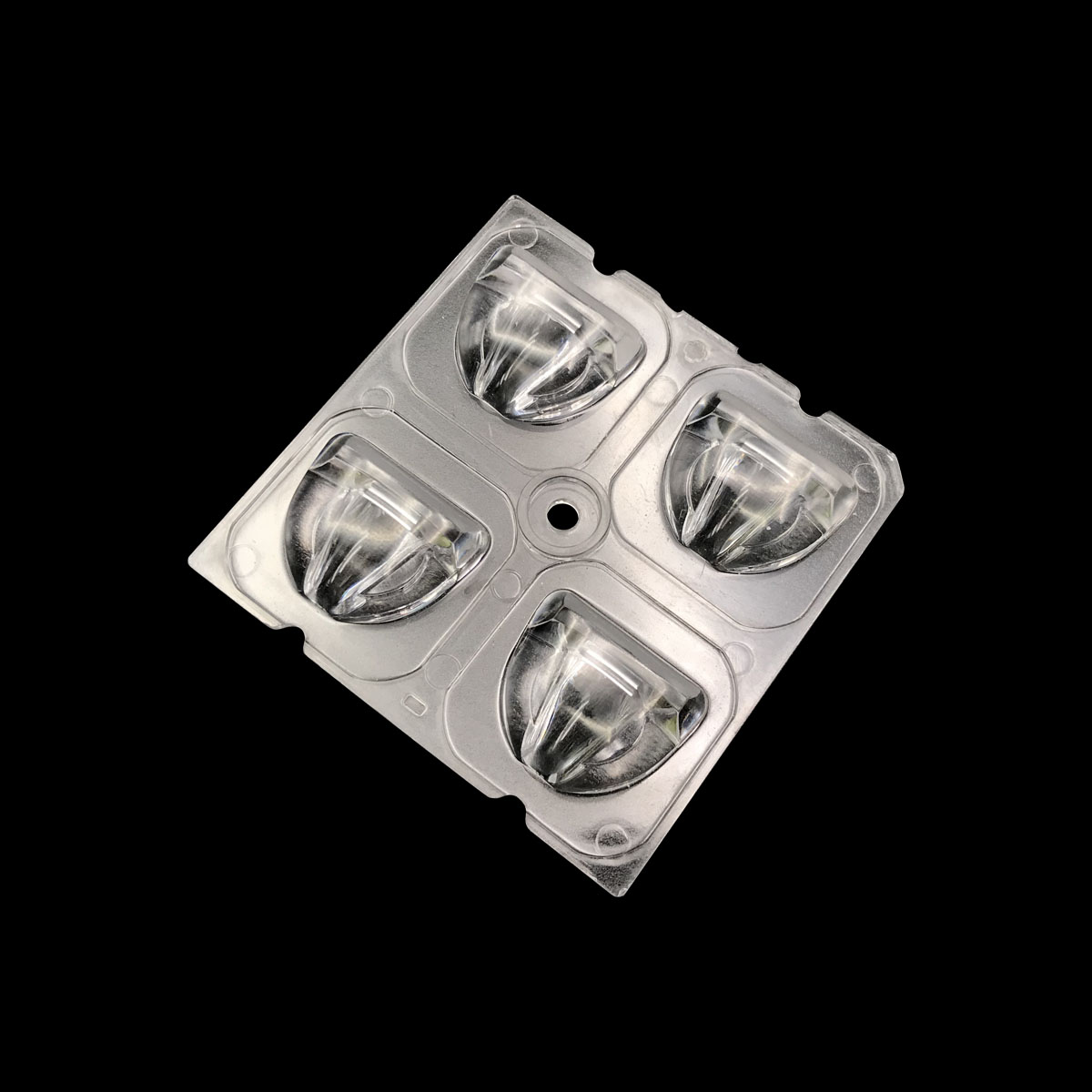

DC		SOL-LS5050-4H1-117	117X52°	49.89*49.89	4LEDs	5050 3535
		SOL-LS5050-4H1-120	120°
		SOL-LS5050-4H1-130	130X70°
		SOL-LS5050-4H1-135	135X60°
		SOL-LS5050-4H1-157	157X57°

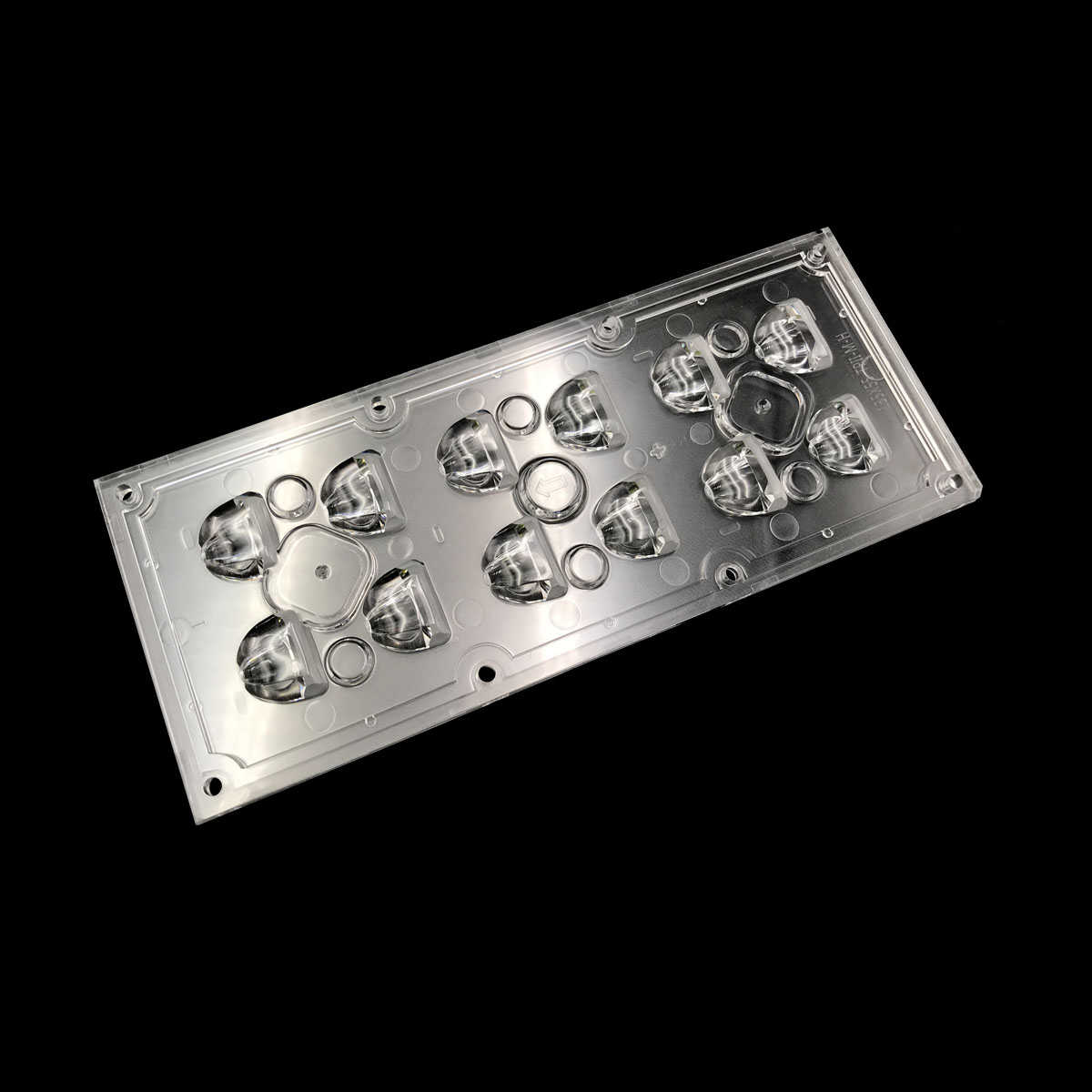

		SOL-LS17371-12H1-30	30°	L173*W71.4	12 LEDs	3535
		SOL-LS17371-12H1-60	60°
		SOL-LS17371-12H1-90	90°
		SOL-LS17371-12H1-135	135X85°
		SOL-LS17371-12H1-157	157X81°

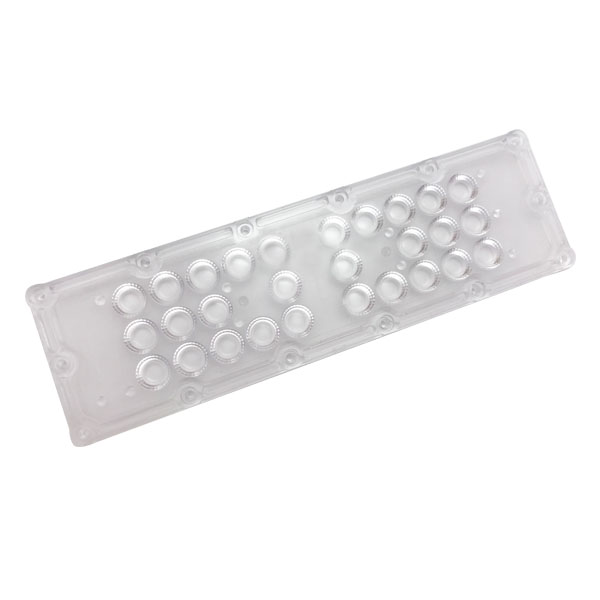

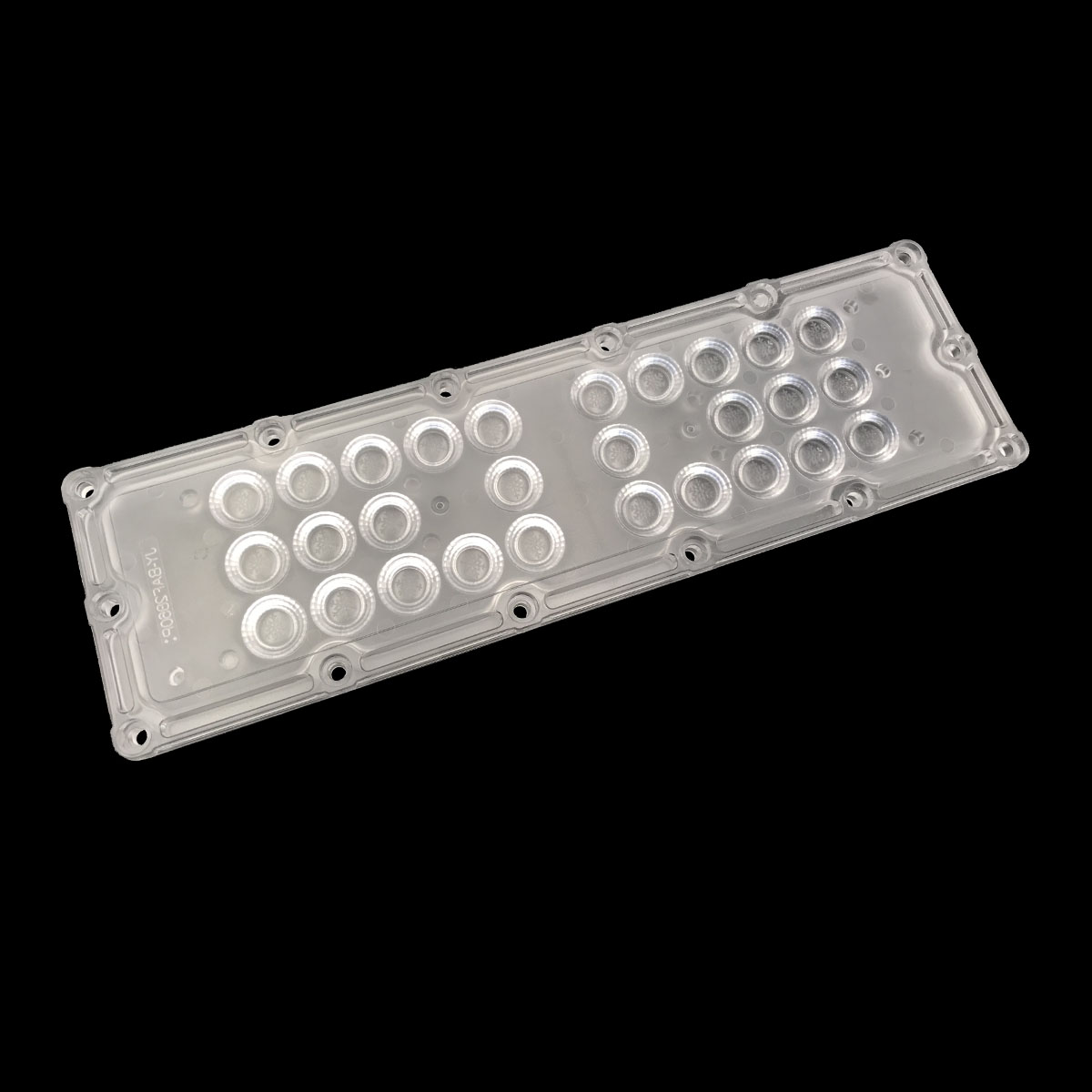

		SOL-LS23570-28H1-60	60°	L235*W70	28 LEDs	5050 3535
		SOL-LS23570-28H1-80	80X50°
		SOL-LS23570-28H1-90	90°
		SOL-LS23570-28H1-120	120°

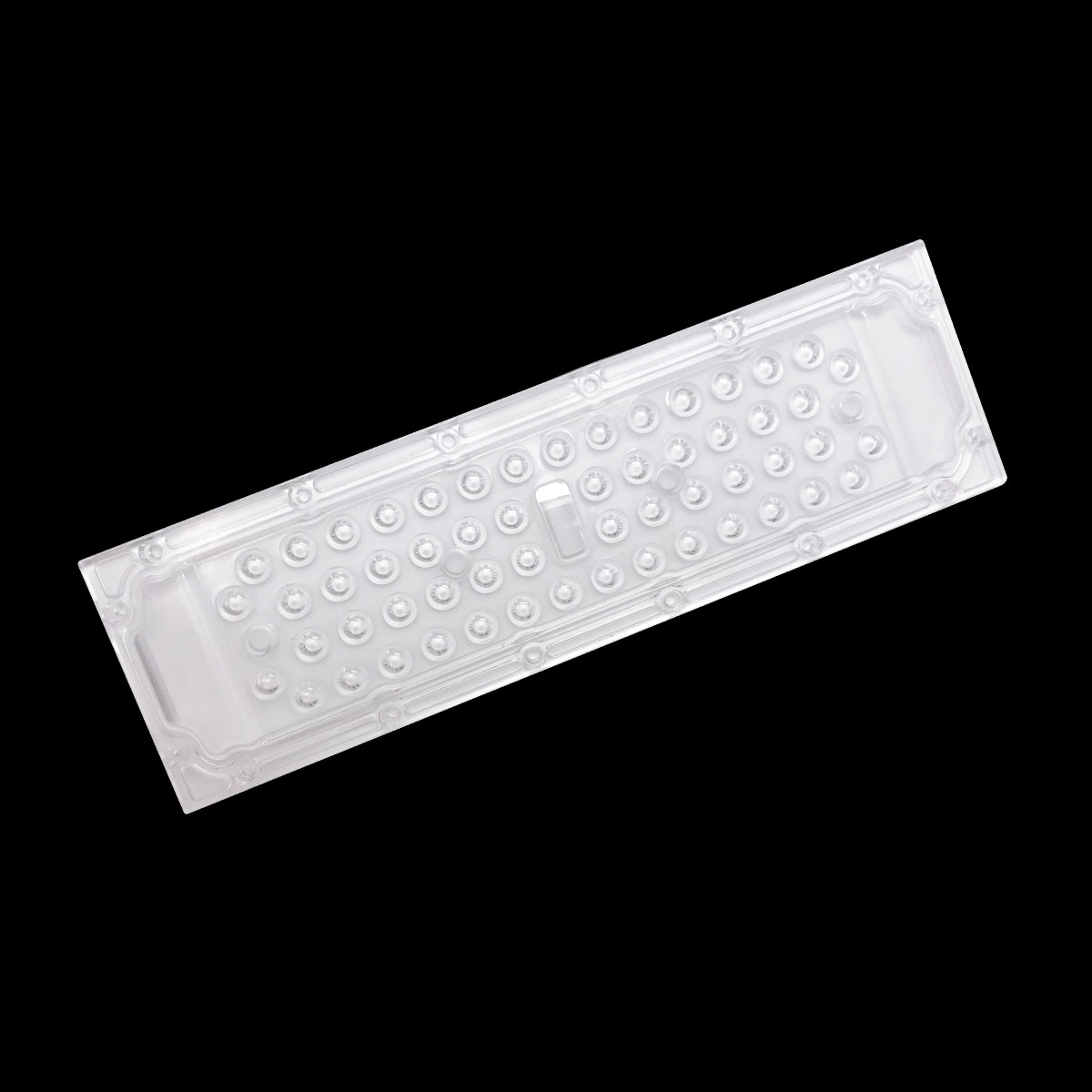

		SOL-LS23570-56H1-25	25°	L235*W70	56 LEDs	3030

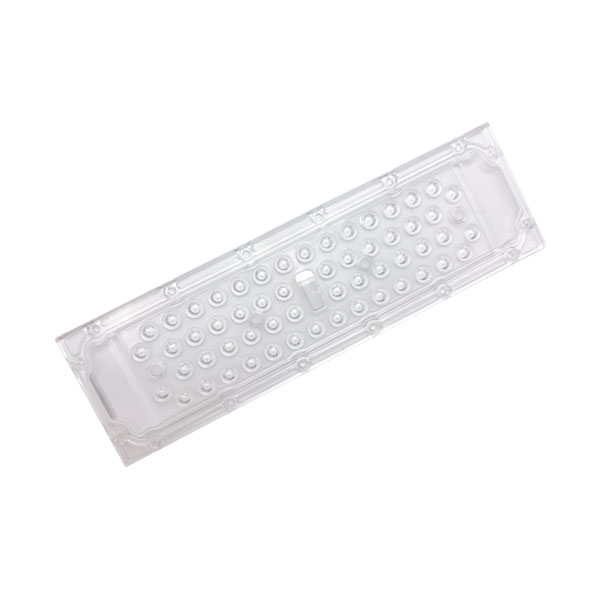

		SOL-LS23570-56H1-60	60°
		SOL-LS23570-56H1-90	90°
		SOL-LS23570-56H1-120	120°
		SOL-LS23570-56H1-138	138X60°

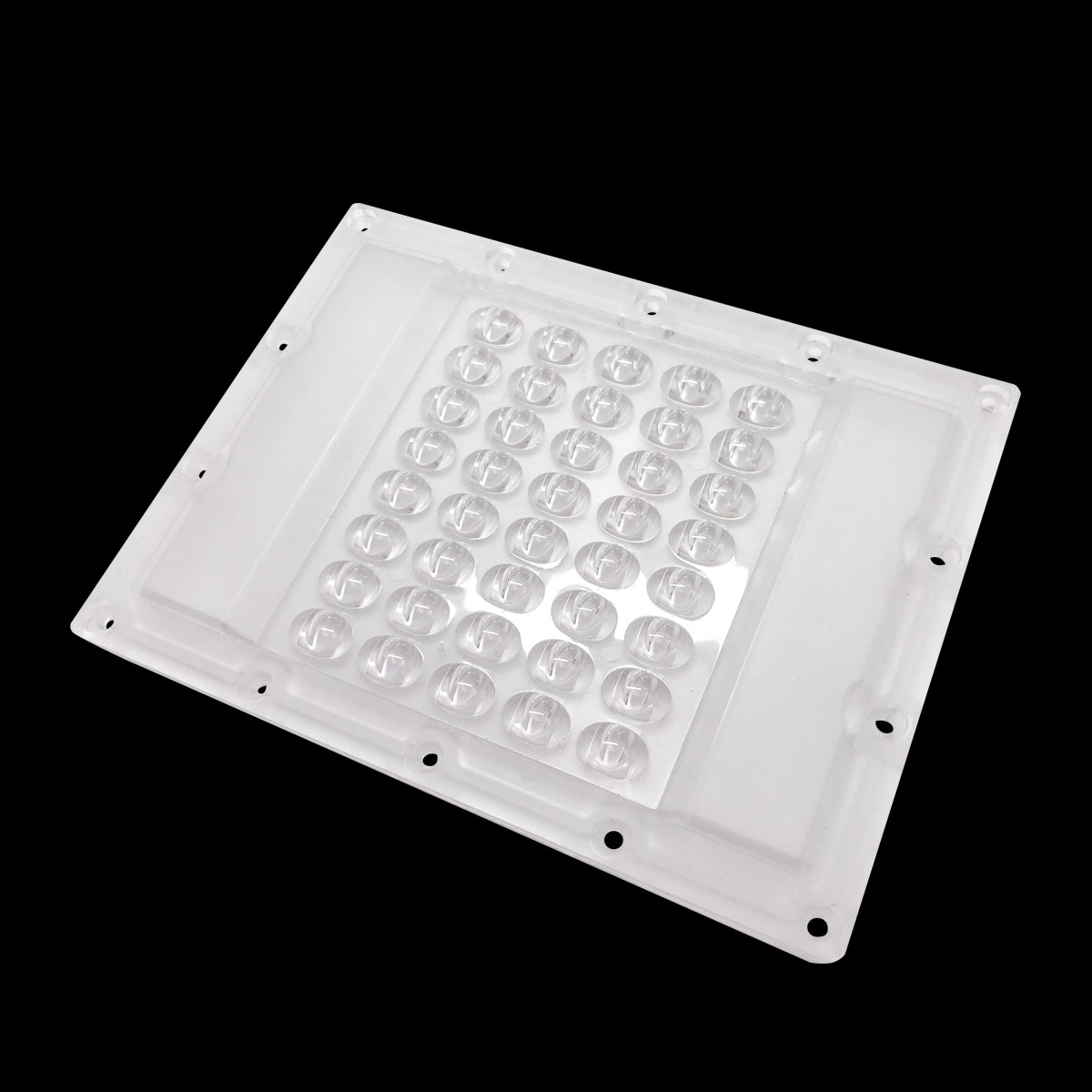

AC		SOL-LS132100-40H1-25	25°	L132*W100	40 LEDs	3030
		SOL-LS132100-40H1-60	60°
		SOL-LS132100-40H1-90	90°
		SOL-LS132100-40H1-120	120°
		SOL-LS132100-40H1-135	135X55°
		SOL-LS132100-40H1-157	157X85°

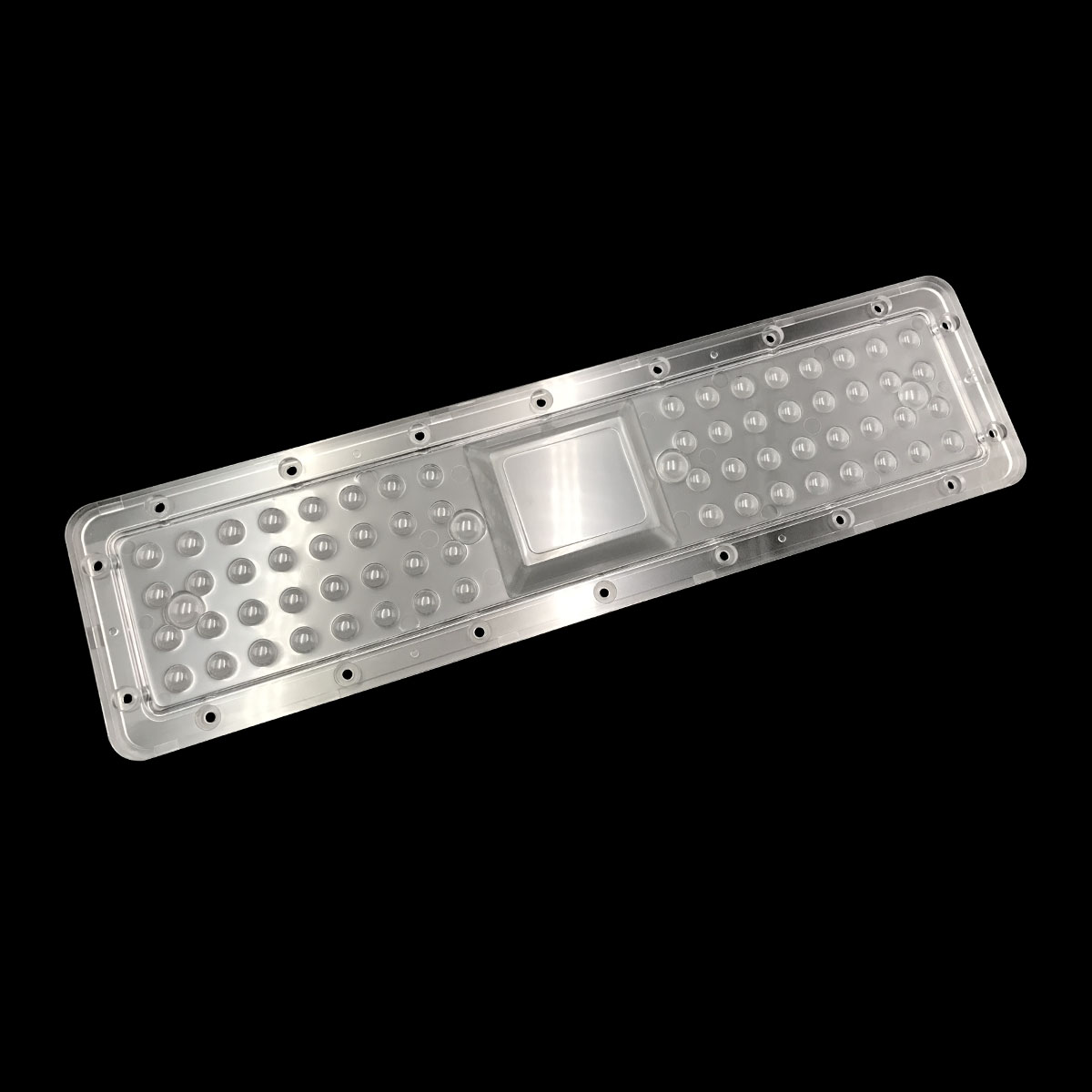

		SOL-LS26370-64H1-25	25°	L263*W70	64 LEDs	3030
		SOL-LS26370-64H1-60	60°
		SOL-LS26370-64H1-90	90°
		SOL-LS26370-64H1-120	120°
		SOL-LS26370-64H1-157	157X85°
