Product instruction:

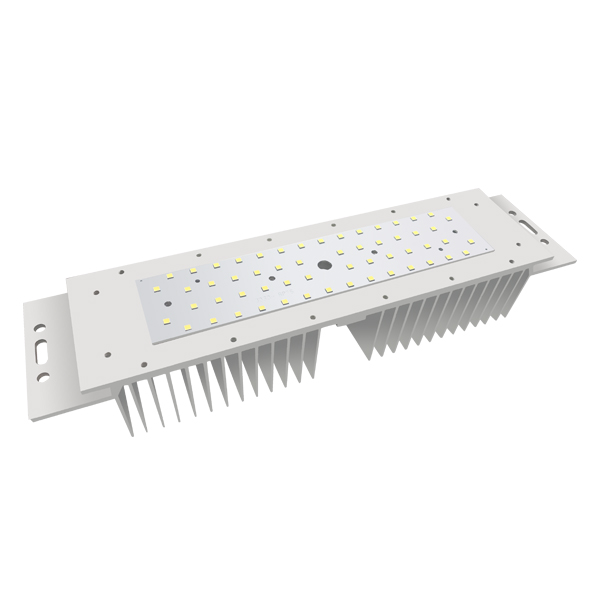

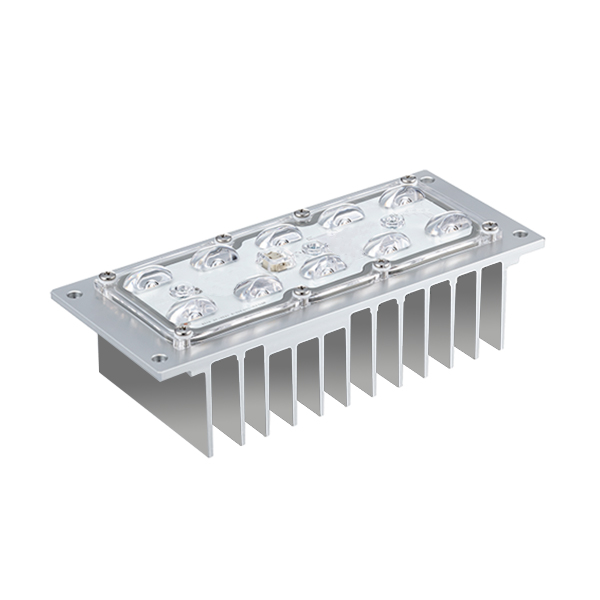

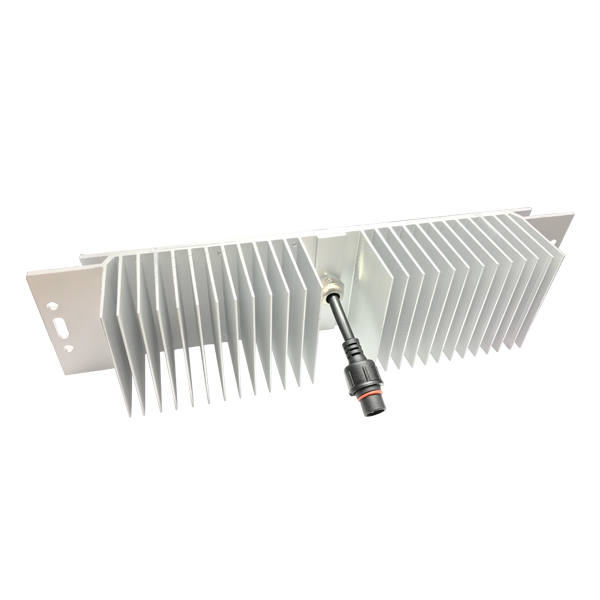

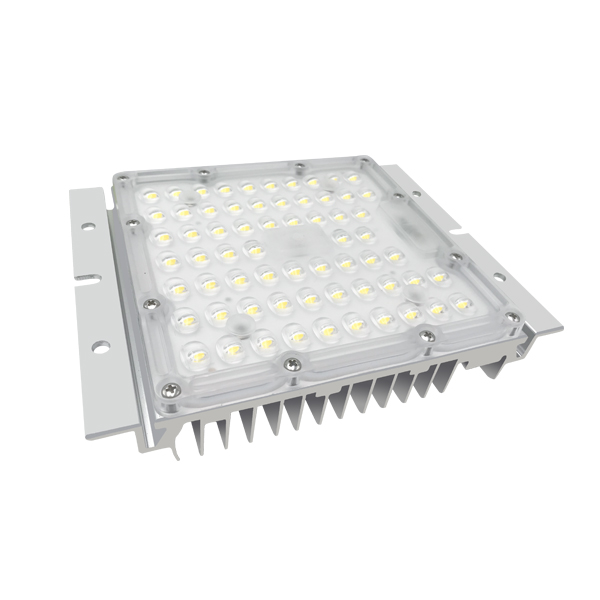

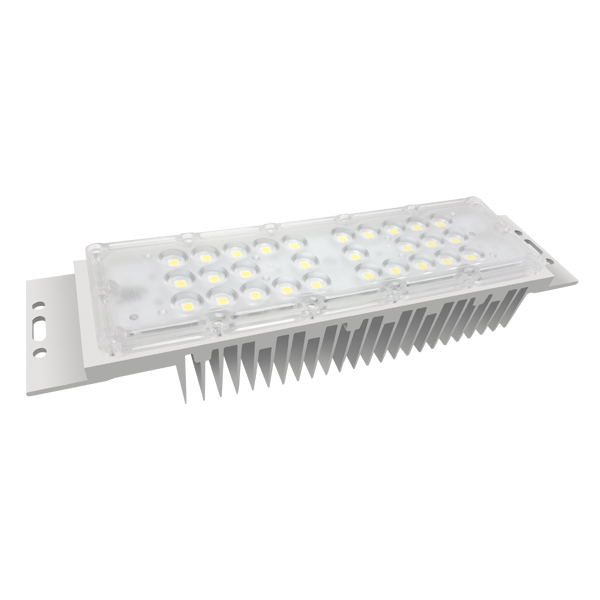

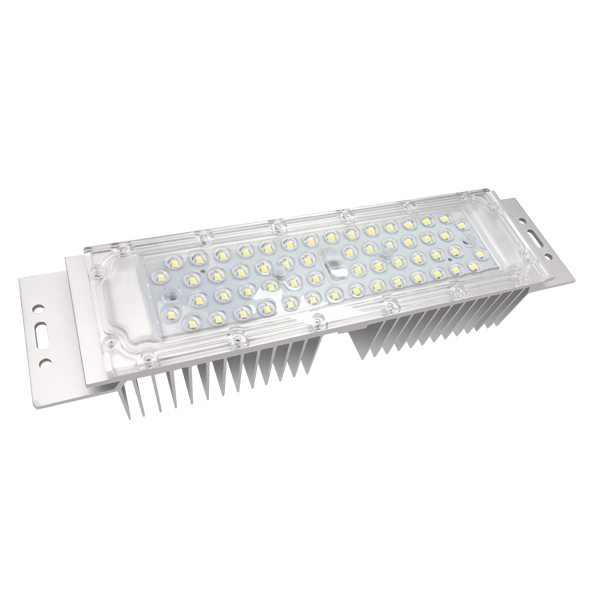

SOL DC Square Series offer great solution for home, office and industrial applications.
The ideal fit for a variety luminaires, and can be used in the light fixture such as linear highbay, Floodlight, Streetlight , etc.
Specification
| Part Number | CCT | CRI | QTY of LEDs | Input Voltage | Typ.Power | Typ.Flux | Typ. Efficacy |
| SLRM-F050S56W-D-XX | 2700/3000 | >70 | 56 |
1.2A 42VDC |
50 | 5500 | 100 |
| SLRM-F050S56P-D-XX |
4000/5000 5700/6500 |
6500 | 110 | ||||
| SLRM-P050S56W-D-XX | 2700/3000 | >70 | 56 |
1.2A 42VDC |
50 | 6500 | 120 |
| SLRM-P050S56P-D-XX |
4000/5000 5700/6500 |
6700 | 135 | ||||
| Units | K | PCS | VAC | W | lm | Lm/W |
| Part Number | CCT | CRI | QTY of LEDs | Input Voltage | Typ.Power | Typ.Flux | Typ. Efficacy |
| SLRM-F050S28W-D-XX | 2700/3000 | >70 | 28 |
1.05A 48VDC |
50 | 5500 | 120 |
| SLRM-F050S28P-D-XX |
4000/5000 5700/6500 |
6750 | 135 | ||||
| SLRM-P050S28W-D-XX | 2700/3000 | >70 | 28 |
1.05A 48VDC |
50 | 7000 | 140 |
| SLRM-P050S28P-D-XX |
4000/5000 5700/6500 |
8000 | 160 | ||||
| Units | K | PCS | VAC | W | lm | Lm/W |
Application
Horticulture
Uitraviolet
Marine light
