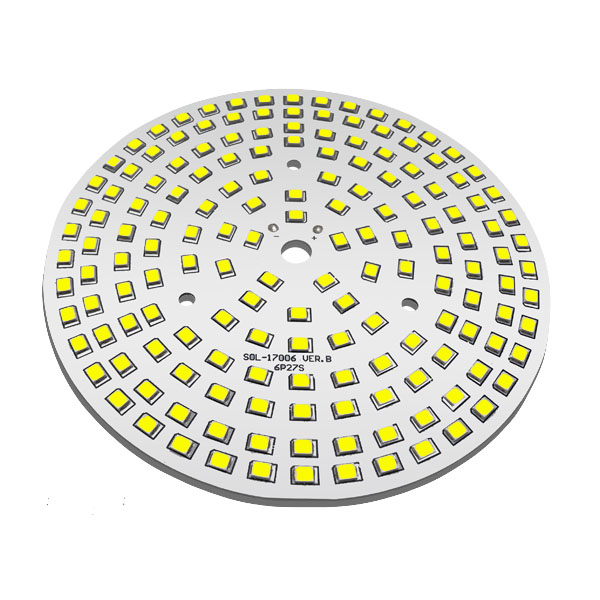

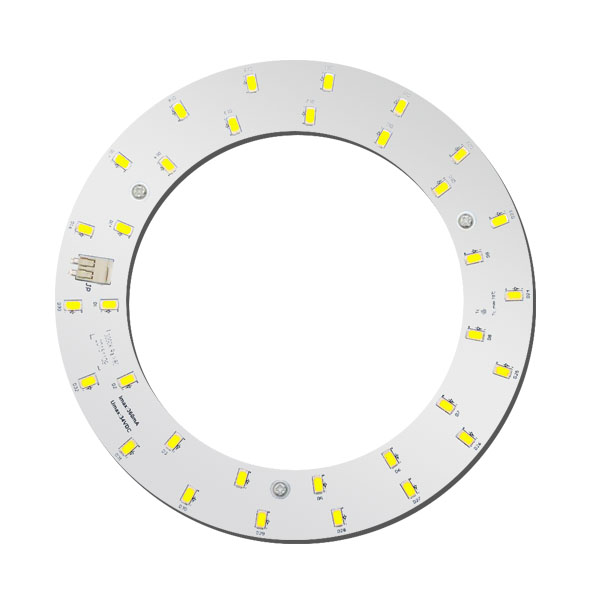

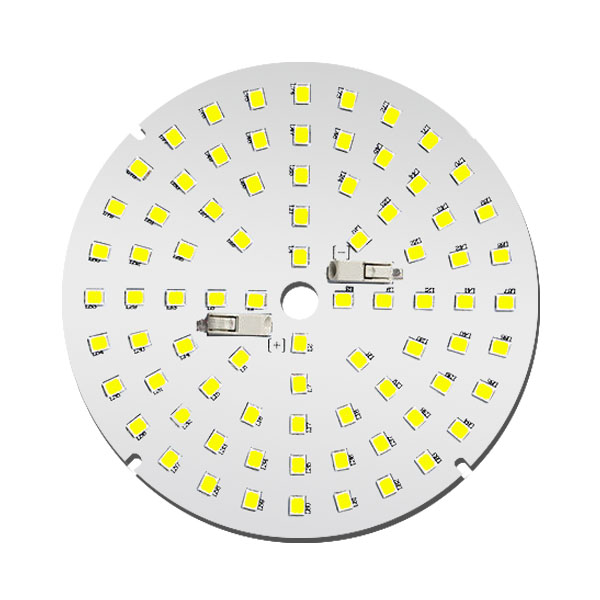

DC LIGHT ENGINE RING SERIES

Product instruction:

SOL DC Light Engine Ring Series is designed to work with most constant current drivers.

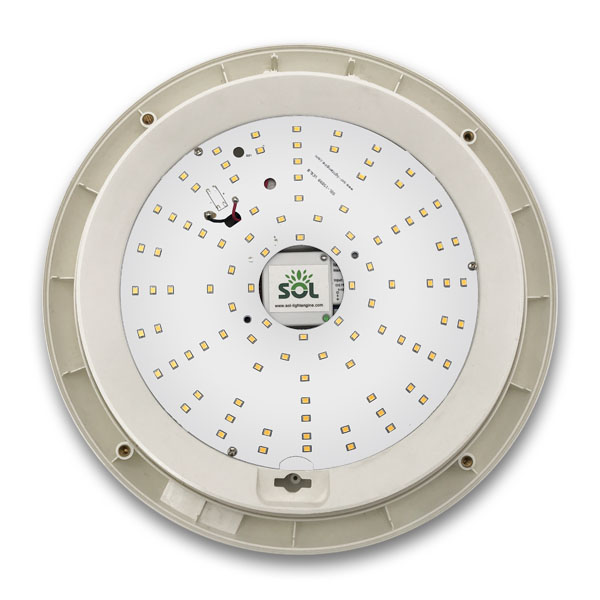

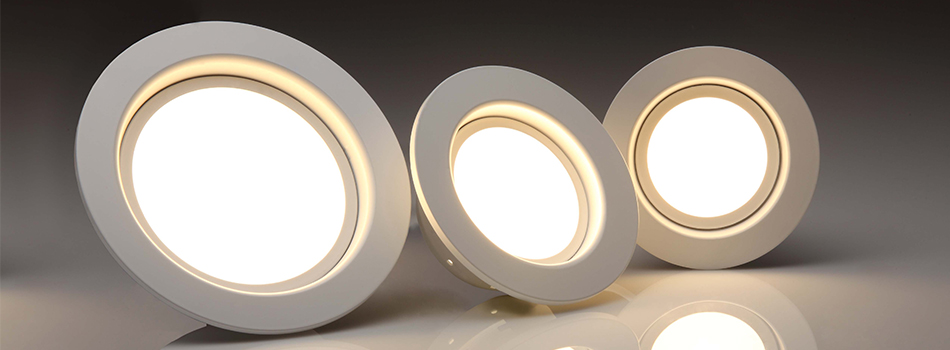

It provides a high efficiency and lower cost solutions for Ceiling light, Wall lamp and retrofit work.

Features

Max to 190LM/W
Long lifespan
Standard CCT’s Available
CRI 80+&90+ Options
Easy assembly
Match with most led drivers
Customization for different size and power available
Note: Input Voltage and Current designed base on your driver output, we also provide driver solution

Specification

Part No.	CCT	Ra>	Typ.Power	Typ.Flux	LED Type	Dimension
SLDM-009R150-XX	2700	>80	9	1125	2835 5730	φ150
	6500			1260
SLDM-015R150-XX	2700	>80	15	1875l	2835 5730	φ150
	6500			2100
SLDM-015R200-XX	2700	>80	15	2250	2835 5730	φ200
	6500			2550
SLDM-020R200-XX	2700	>80	20	2500	2835 5730	φ200
	6500			2800
SLDM-025R250-XX	2700	>80	25	3125l	2835 5730	φ250
	6500			3500
SLDM-030R250-XX	2700	>80	30	3750	2835 5730	φ250
	6500			4200
Units	K		W	lm	SMD LEDs	mm

Application
