Product instruction:
SOL DC Linear Series offer great solution for home, office and industrial applications.
The ideal fit for a variety luminaires, and can be used in the light fixture where fluorescent technology is currently employedSpecification
Part Number | CCT | CRI | QTY of LEDs | Input Voltage | Test Current | Typ. Power | Typ. Flux | Typ. Efficacy |
SLDM-F004L52612W-XX |
2700/ 3000 |
>80 | 18 | 16.5- 20.5V | 180 | 3.2 | 352 | 110 |
SLDM- F004L52612W -XX | 450 | 8.6 | 946 | 110 | ||||
SLDM- F005L52612P -XX |
4000/ 5000/ |
>80 | 18 | 16.5- 20.5V | 180 | 3.2 | 384 | 120 |
SLDM- F009L52612P -XX | 450 | 8.6 | 1032 | 120 | ||||
SLDM- P004L52612W -XX |
2700/ 3000 |
>80 | 18 | 16.5- 20.5V | 180 | 3.2 | 480 | 150 |
SLDM- P009L52612W -XX | 450 | 8.6 | 1161 | 135 | ||||
SLDM- P004L52612P -XX |
4000/ 5000/ |
>80 | 18 | 16.5- 20.5V | 180 | 3.2 | 512 | 160 |
SLDM- P009L52612P -XX | 450 | 8.6 | 1247 | 145 | ||||
Units | K | PCS | VDC | mA | W | lm | lm/W |

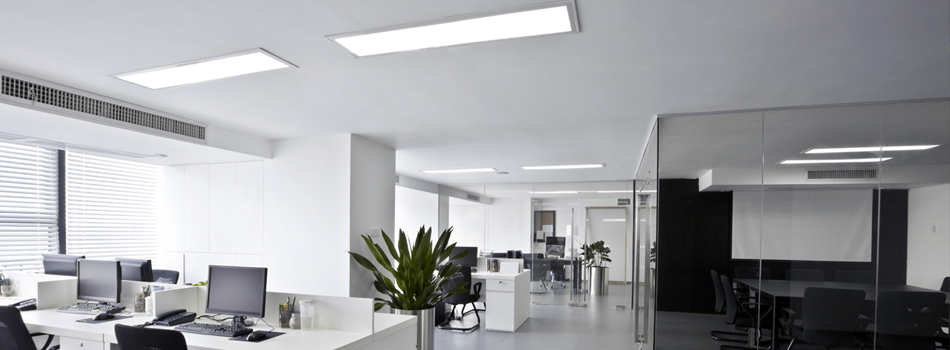

Application
